Engine and transmission
Engine size 1649.0 ccm (100.62 cubic inches)
Type of engine In-line six, four-stroke
Effect 158.2 HP (115.5 kW)) @ 7750 RPM
Torque 175.0 Nm (17.8 kgf-m or 129.1 ft.lbs) @ 5250 RPM
Compression 12.2:1
Bore x stroke 72.0 x 67.5 mm (2.8 x 2.7 inches)
Valves per cylinder 4
Fuel system Injection. Electronic intake pipe injection, digital engine management (BMS-X)
Fuel control Double Overhead Cams/Twin Cam (DOHC)
Lubrication system Dry sump
Cooling system Liquid
Gearbox 6-speed
Transmission type Shaft drive (cardan) (final drive)
Clutch Multiple-disc clutch in oil bath
Driveline Cardan shaft
Fuel consumption 4.60 litres/100 km (21.7 km/l or 51.13 mpg)
Greenhouse gases 106.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis, suspension, brakes and wheels
Frame type Bridge-type frame, cast aluminium, load-bearing engine
Rake (fork angle) 27.8°
Trail 108 mm (4.3 inches)
Front suspension BMW Motorrad Duolever
Front wheel travel 125 mm (4.9 inches)
Rear suspension BMW Motorrad Paralever
Rear wheel travel 135 mm (5.3 inches)
Front tire 120/70-ZR17
Rear tire 190/55-ZR17

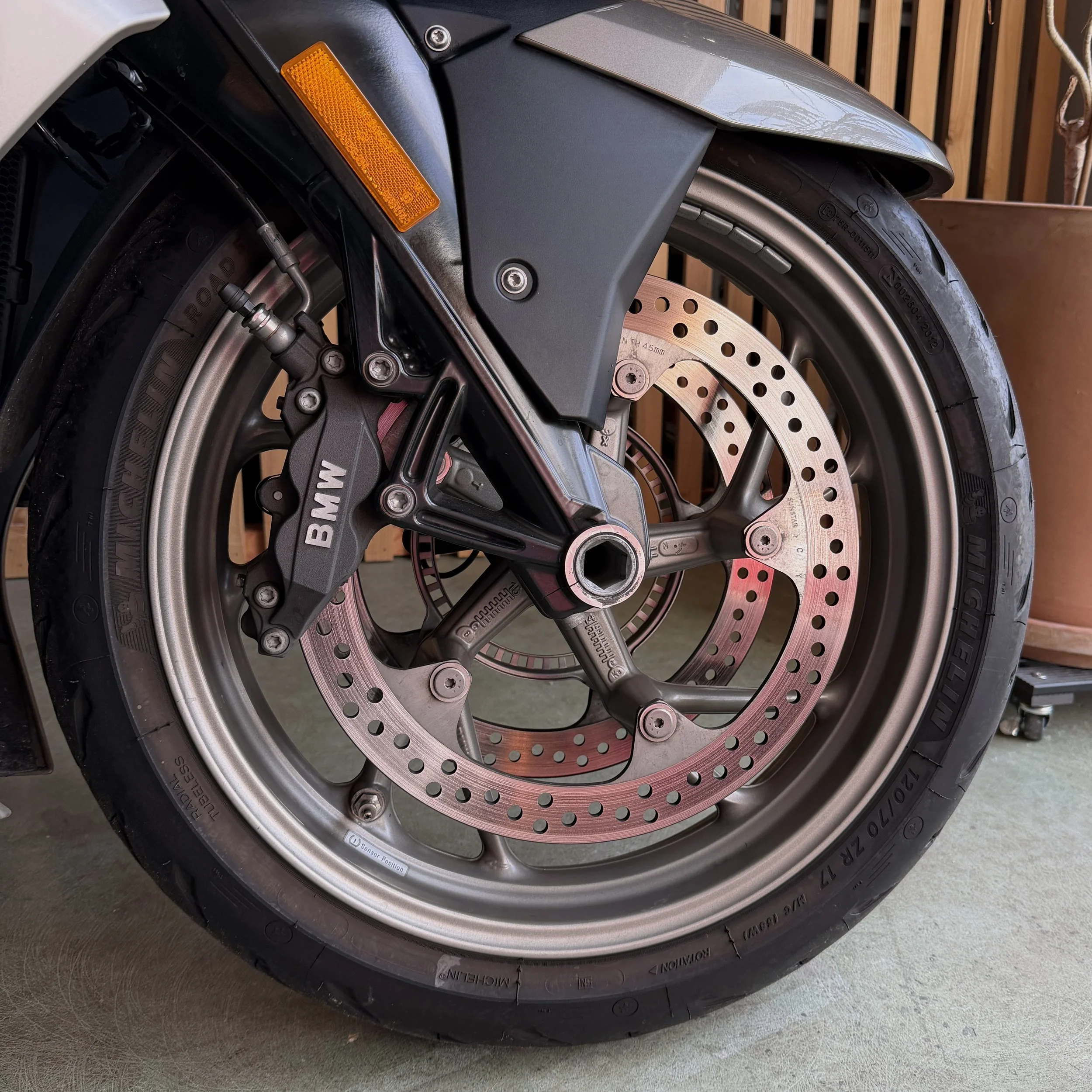

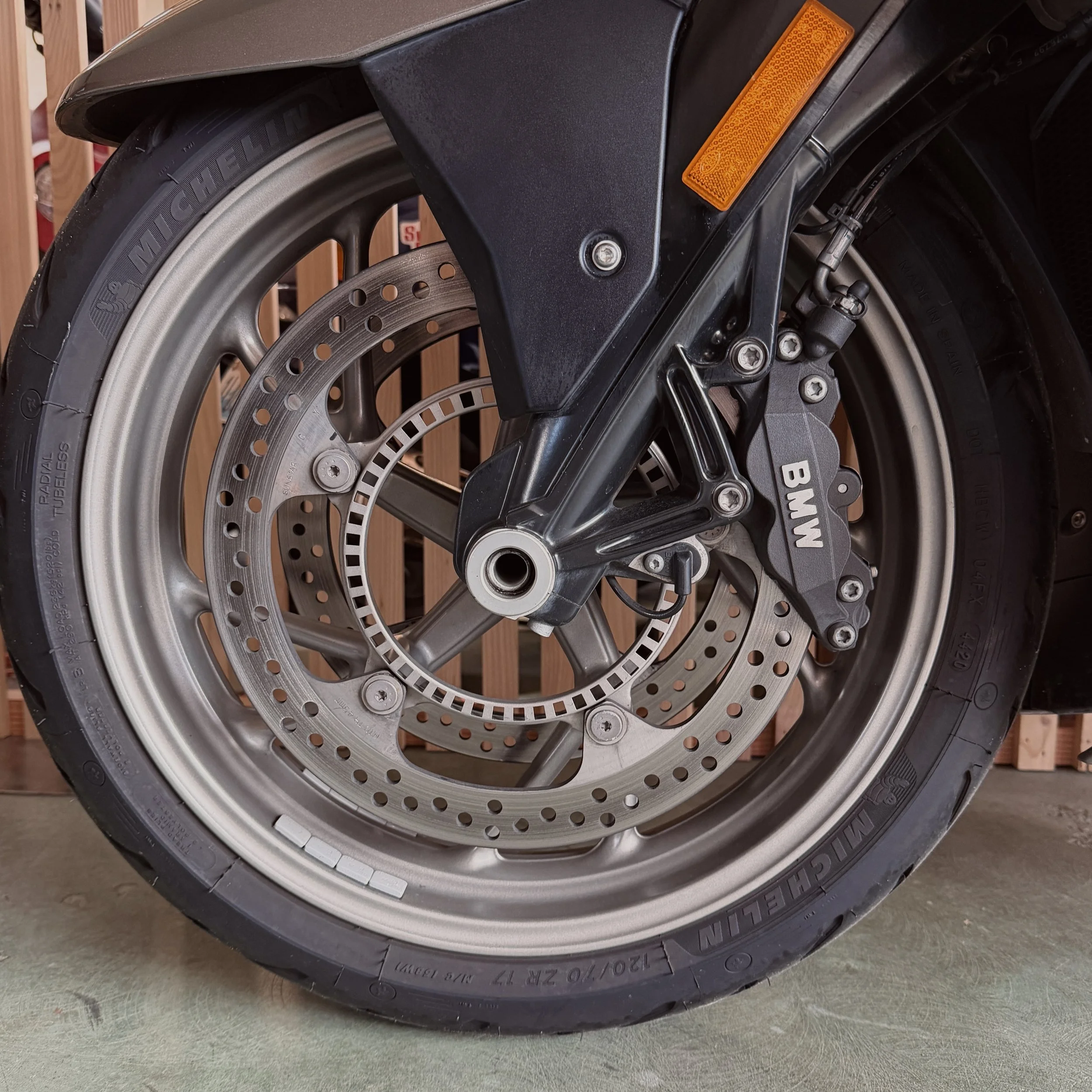

Front brakes Double disc. Four-piston calipers.
Diameter 320 mm (12.6 inches)
Rear brakes Single disc. Two-piston calipers.
Diameter 320 mm (12.6 inches)
Wheels Cast aluminium wheels
Physical measures and capacities
Dry weight 321.0 kg (707.7 pounds)
Weight incl. oil, gas, etc 348.0 kg (767.2 pounds)
Power/weight ratio 0.4930 HP/kg
Seat height 750 mm (29.5 inches) If adjustable, lowest setting.
Overall height 1465 mm (57.7 inches)
Overall length 2489 mm (98.0 inches)
Overall width 1000 mm (39.4 inches)
Wheelbase 1680 mm (66.1 inches)
Fuel capacity 26.50 litres (7.00 US gallons)
Reserve fuel capacity 4.00 litres (1.06 US gallons)
